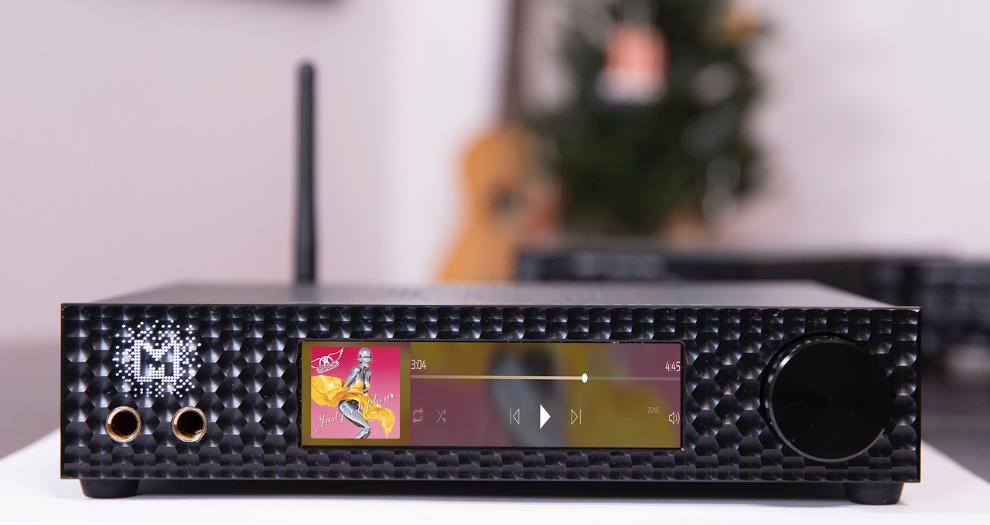

BROOKLYN BRIDGE II
ROON CORE SYSTEM • DAC • HEADPHONE • PHONO• PREAMP
Brooklyn Bridge II is the result of a major redesign of our best selling original Brooklyn Bridge. The Brooklyn Bridge II now officially has a built in Roon Core combined with Mytek OS for easy touch screen operation from an ipad, smart phone or front panel screen.
BUILT IN ROON CORE CPU - POWERED BY ROON OS: Brooklyn Bridge has all functionality of a Roon Core CPU combined with high performance DAC. Roon Software can be operated from Roon Remote App or from Mytek Web Interface from any device connected to the network. Bridge can function as a multiroom playback machine playing to different Roon end points.
SPECS
CONVERSION
up to 384k, 32bit PCM, native DSD up to DSD256, DXD, 130dB DR, ES9038 chipset
MQA HI-RES DECODER
DECODER: built in hardware MQA decoder, full unfold to original sample rate
DIGITAL DAC INPUTS
USB2 Class2 (OSX, Linux driverless, all formats up to 384k), 2x S/PDIF (PCM up to 24/192k, up to DSD64 DOP), Toslink/ADAT, 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), SDIF3 DSD up to DSD256
ADDITIONAL DIGITAL INPUTS
Bluetooth 5 and Roon End Point on the network
BUILT-IN ANALOG PREAMP
Line level input or Phono M/M, M/C input, relay controlled
USB storage connector
Any music files on FAT /NTFS / Mac formatted drive or USB Stick
ANALOG OUTPUTS
RCA, balanced XLR, simultaneous, 50 Ohm impedance
-
HEADPHONE OUTPUTS
Reference High Current, High transient Headphone Amp, 500mA, 6 Watts, dual headphone jacks, designed to drive hard to drive headphones.
CLOCK
Mytek Femtoclock GeneratorTM 0.82ps internal jitter
-
VOLUME ATTENUATOR
Choice of 1dB step analog attenuator, separate for main out and head- phones, 1dB step digital 32 bit attenuator and purist relay bypass.
-
DIMENSIONS
WxDxH=8.5x8.8x1.74”=216x225x44mm
-
WEIGHT
6lbs, 3kg
-
WARRANTY
2 years
-
APPLE AIRPLAY, DLNA and GOOGLE CHROMECAST ready
SHIPPING JUNE 2021
DESIGNED IN NEW YORK
